Kawasaki Construction Machinery (Hitachi) 80Z7 Wheel Loader For Sale
Location: Texas, USA
This equipment has SOLD
DESCRIPTION

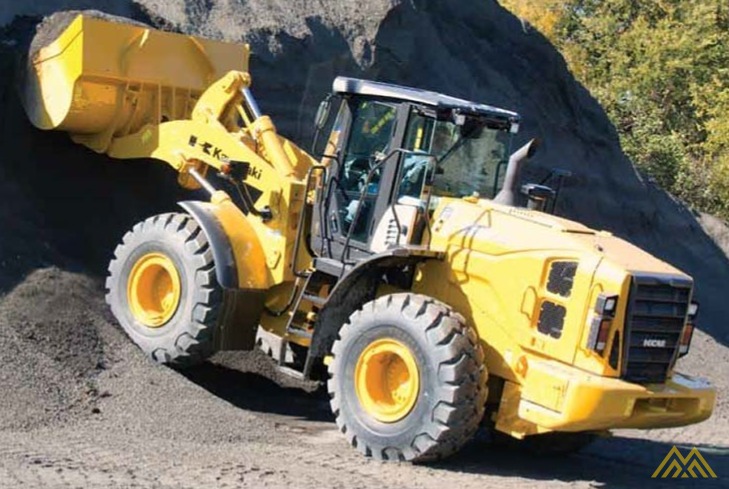

2013 KAWASAKI 80Z7 - 4.2 CUBIC YARD WHEEL LOADER
4.2 Cubic Yard General Purpose Bucket (Pin-On); 200 HP Cummins Diesel Engine; Enclosed Cab with AC & Heater; Heated Seat with TLV Suspension; 23.5-25 (L-3) Tires; Ride Control; Optional Counterweight; All Other Standard Features
Specifications
|
General |
|
|---|---|
|
Stock Number |
6645 |
|
Condition |
Used |
|
Manufacturer |
KCMA |
|
Category |
Loaders |
|
Subcategory |
WHEEL LOADERS |
|
Year |
2013 |
|
Model |
80Z7 |
|
Serial |
80C6-5038 |
|
Miles |
3500 |
|
Dimensions |
|
|---|---|
|
Height |
11 ft. 7/8 in. (3,375 mm) |
|
Weight |
38,470 - 39,020 lbs. (17,450 - 17,700 kg) with ROPS cab |
|
Wheelbase |
10 ft. 9-7/8 in. (3,300 mm) |
|
Ground Clearance |
1 ft. 5-3/4 in. (450 mm) |
|
Turning Radius |
At Outside Tire: 41 ft. 5-7/8 in. (12,645 mm)At Outside Bucket: 45 ft. 4-7/8 in. - 46 ft. 8-5/8 in. (13,840 - 14,240 mm) |
|
Drivetrain |
|
|---|---|
|
Transmission Type |
Countershaft type, full power shift |
|
Axles |
Semi-floating type |
|
Brakes |
Service: 4-wheel wet multiple disc brake, controlled by full hydraulic system (dual circuit)Parking / Emergency: Spring applied, oil pressure released, located on driveline |
|
Tires |
23.5 x 25-16PR (L-3) (L-4) (L-5) |
|
Engine |
|
|---|---|
|
Engine Type |
4-cycle, direct injection type with turbo charger and air-cooled intercooler |
|
Engine Make |
Cummins |
|
Engine Model |
QSB6.7 |
|
Fuel Type |
Diesel |
|
Cylinders |
6 |
|
Gross Horsepower |
200 hp (149 kW) @ 2,200 rpm (SAE J1995) |
|
Net Horsepower |
193 hp (145 kW) @ 2,200 rpm (ISO 9249) |
|
Displacement |
408 L |
|
Cooling |
Engine: Water-cooled |
|
Fuel Tank Capacity |
67.4 gal. (255 l) |
|
Speed Forward |
1st: 3.9 mph (6.2 km/h)2nd: 6.6 mph (10.6 km/h)3rd: 9.9 mph (16 km/h)4th: 14.8 mph (23.8 km/h)5th: 22.4 mph (36 km/h) |
|
Speed Reverse |
1st: 4 mph (6.5 km/h)2nd: 6.9 mph (11.1 km/h)3rd: 15.5 mph (24.9 km/h) |
|
Battery |
|
|---|---|
|
Voltage |
Battery: (2) 12V, 108 Ah, 1,000 CCA |
|
Amps |
Alternator: 65A |
|
Hydraulics |
|
|---|---|
|
Hydraulic Tank Capacity |
50.2 gal. (190 l) |
|
Operational |
|
|---|---|
|
Tipping Load |
Straight: 20,570 - 26,260 lbs. (9,330 - 11,910 kg) with ROPS cabFull Turn: 17,660 - 22,690 lbs. (8,010 - 10,290 kg) with ROPS cab |
|
Dig Depth |
4 - 7-1/8 in. (100 - 180 mm) |
|
Bucket Capacity |
Heaped: 4.2 - 4.7 cu. yd. (3.2 - 3.6 m³)Struck: 3.5 - 4 cu. yd. (2.7 - 3.1 m³) |
|
Dump Height |
9 ft. 1-7/8 in. - 10 ft. 9-7/8 in. (2,790 - 3,300 mm) |
|
Dump Reach |
3 ft. 8-7/8 in. - 4 ft. 3-1/8 in. (1,140 - 1,300 mm) |
|
Bucket Breakout Force |
29,450 - 32,370 lbs. (131 - 144 kN) |
|
Bucket Rollback |
At Ground Level: 43 - 44°At Carry Position: 50° |
|
Total Cycle Time |
10.8 sec. |
