Kawasaki Construction Machinery (Hitachi) 65ZV-2 Wheel Loader For Sale
Location: Texas, USA
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
This equipment has SOLD
DESCRIPTION

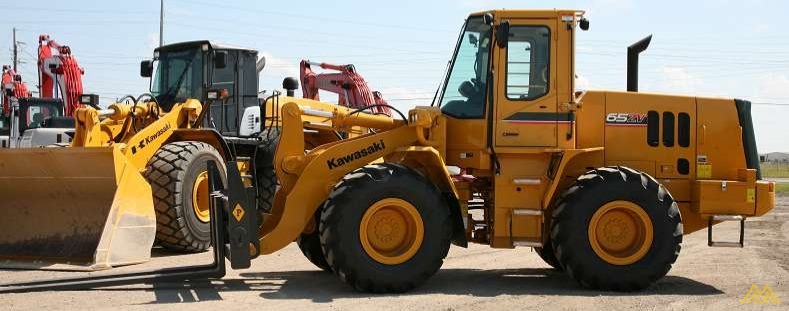

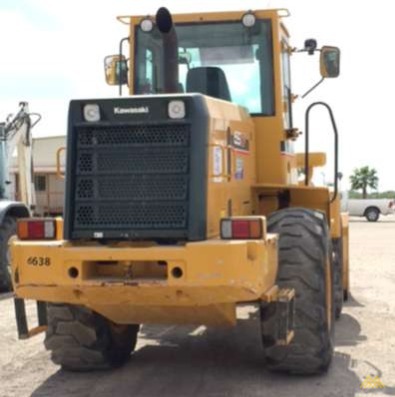

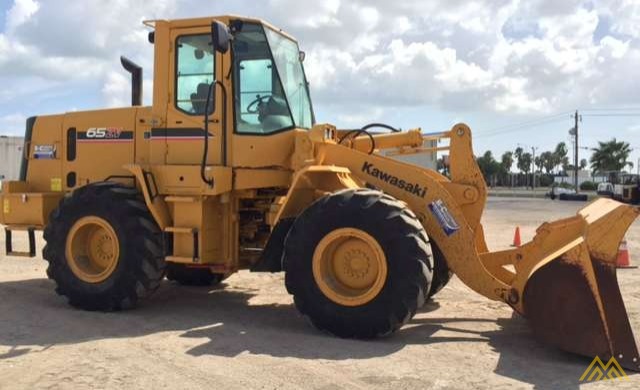

Kawasaki 65ZV-2
3.0 Cubic Yard General Purpose Bucket (Pin-On); 154 HP Isuzu Diesel Engine; Enclosed Cab with AC & Heater; 20.5-25 (L-2) Tires; Optional Counterweight; Multi-Function Grip Joystick; All Other Standard Features
Specifications
|
General |
|
|---|---|
|
Stock Number |
6632 |
|
Condition |
Used |
|
Manufacturer |
KCMA |
|
Category |
Loaders |
|
Subcategory |
WHEEL LOADERS |
|
Year |
2013 |
|
Model |
65ZV-2 |
|
Serial |
65J4-5426 |
|
Hours |
3200 |
|
Dimensions |
|
|---|---|
|
Height |
10 ft. 8-3/4 in. (3,270 mm) |
|
Weight |
25,490 - 26,240 lbs. (11,560 - 11,900 kg) with ROPS cab |
|
Wheelbase |
9 ft. 6-1/4 in. (2,900 mm) |
|
Ground Clearance |
1 ft. 5-1/2 in. (445 mm) |
|
Turning Radius |
At Center Of Outside Tire: 17 ft. 5/16 in. (5,190 mm)At Outside Bucket: 18 ft. 11-1/4 in. - 19 ft. 10-9/16 in. (5,770 - 6,060 mm) |
|
Drivetrain |
|
|---|---|
|
Transmission Type |
Full power shift |
|
Axles |
Semi-floating type |
|
Brakes |
Service: 4-wheel adjustment-free, wet multiple disc brake, controlled by full hydraulic system (dual circuit)Parking / Emergency: Spring applied, oil pressure released, dry drum type located in front driveline. |
|
Tires |
20.5-25-12PR (L-2) |
|
Engine |
|
|---|---|
|
Engine Type |
4-cycle, in-line direct injection type with turbo charger and air-cooled intercooler |
|
Engine Make |
Isuzu |
|
Engine Model |
4HKIX |
|
Fuel Type |
Diesel |
|
Cylinders |
4 |
|
Gross Horsepower |
154 hp @ 2,200 rpm (SAE J1995) |
|
Net Horsepower |
149 hp @ 2,200 rpm (SAE J1349) |
|
Displacement |
317 L |
|
Torque |
Net Peak: 431 ft. lbs. @ 1,500 rpm |
|
Cooling |
Engine: Water-cooledTransmission: Forced circulation type |
|
Fuel Tank Capacity |
55.5 gal. (210 l) |
|
Speed Forward |
1st: 5.3 mph (8.5 km/h)2nd: 8.6 mph (13.8 km/h)3rd: 13.4 mph (21.4 km/h)4th: 23 mph (37 km/h) |
|
Speed Reverse |
1st: 5.3 mph (8.5 km/h)2nd: 8.6 mph (13.8 km/h)3rd: 13.4 mph (21.4 km/h)4th: 23 mph (37 km/h) |
|
Battery |
|
|---|---|
|
Voltage |
Battery: (2) 12V, 100 Ah, 630 CCA |
|
Amps |
Alternator: 50A |
|
Hydraulics |
|
|---|---|
|
Hydraulic Tank Capacity |
26.4 gal. (100 l) |
|
Operational |
|
|---|---|
|
Tipping Load |
Straight: 18,060 - 23,110 lbs. (8,190 - 10,480 kg) with ROPS cabFull Turn: 15,480 - 19,730 lbs. (7,020 - 8,950 kg) with ROPS cab |
|
Dig Depth |
1-3/16 - 2-3/16 in. (30 - 55 mm) |
|
Bucket Capacity |
Heaped: 2.8 - 3.3 cu. yd. (2.1 - 2.5 m³)Struck: 2.4 - 2.9 cu. yd. (1.8 - 2.2 m³) |
|
Dump Height |
8 ft. 11-1/2 in. - 11 ft. 8-13/16 in. (2,730 - 3,575 mm) |
|
Dump Reach |
3 ft. 3-9/16 in. - 3 ft. 6-1/8 in. (1,005 - 1,070 mm) |
|
Bucket Breakout Force |
20,940 - 23,990 lbs. (9,500 - 10,880 kg) |
|
Bucket Rollback |
At Ground Level: 42° - 43°At Carry Position: 47° - 50° |
|
Total Cycle Time |
9.9 sec. |
